Creating/Editing layouts within XVCapture/DCV does not create/edit the layouts within XVWeb. When creating custom layouts, the same layout must be created in both XVWeb and XVCapture in order for your images to display correctly in XVWeb. If you need to create/edit layouts within XVWeb, please refer to Creating Custom Layouts - XVWeb.
The following steps will walk you through creating a custom layout in XVCapture/DCV from scratch. Before beginning the walkthrough, please remember that the tooth associations within each tile are very important. If you are creating a layout within XVCapture/DCV to match an already existing layout in XVWeb, it is vital that each tile's tooth associations match to the XVWeb layout exactly.
Click this link to view the accompanying video
Navigating to the Progression Editor

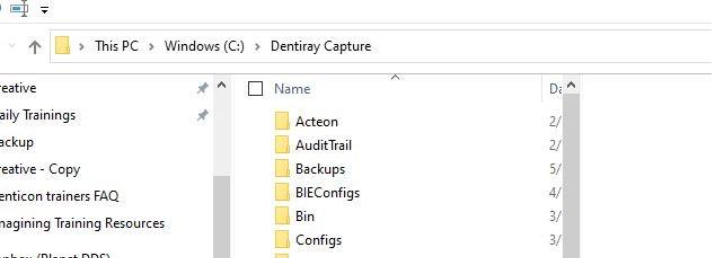

- Navigate to the XVCapture/DCV root folder.

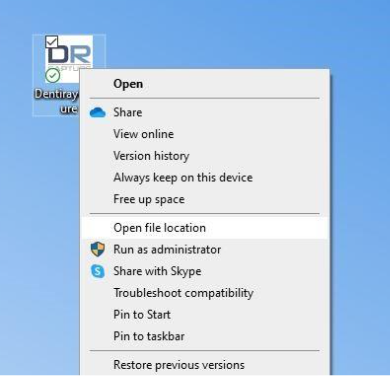

- If you have a desktop icon for the software, right click on the icon and select Open file location from the context menu to navigate to the root folder.
- Locate and double-click Progression Editor.exe within that root folder to open the Progression Editor.
Creating your Layout

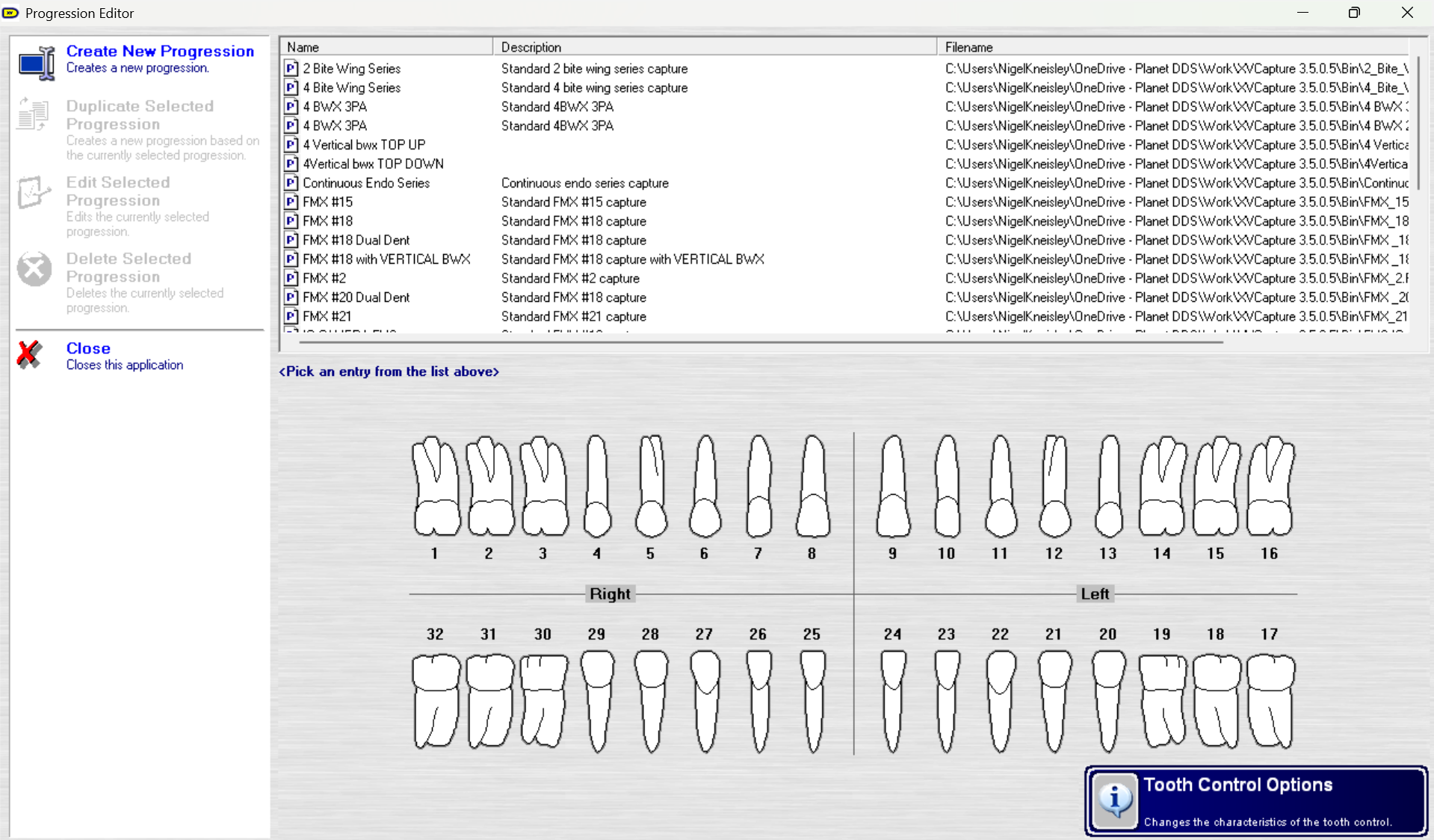

- Click on Create New Progression in the upper left of the Progression Editor.
- Name your progression within the Progression Name field (optionally, provide a description of the layout in the Progression Description field).
- Select Add New Shot in the upper left.

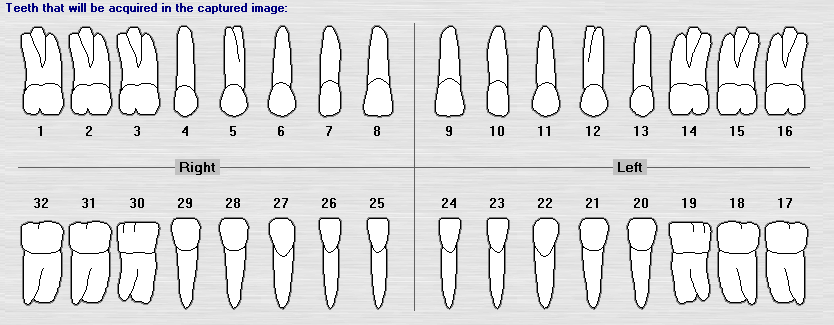

- Select the desired tooth associations from the populated chart (either by individually clicking each tooth, or click-dragging over multiple at once).

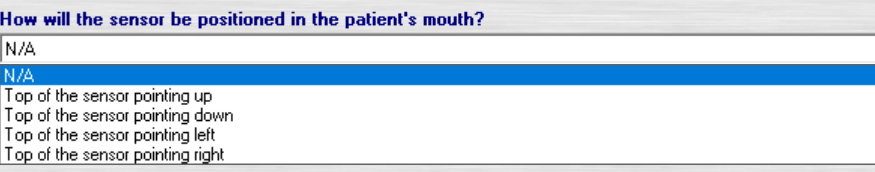

- Specify the direction the sensor will be positioned in the patient's mouth when capturing this shot. "Top of the sensor" refers to the side of the sensor opposite of the wire.
- Click OK.
- Repeat steps 3-6 for each tile needed in the layout.

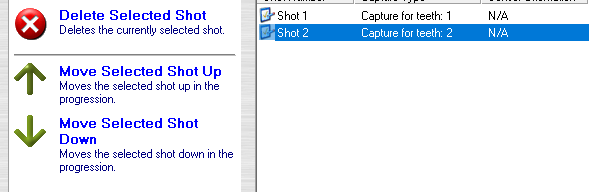

- It is best practice to create the Shots in the order they will be taken. The order can be adjusted later by highlighting the Shot needing moved, then clicking either Move Selected Shot Up or Move Selected Shot Down in the left side bar.
- It is best practice to create the Shots in the order they will be taken. The order can be adjusted later by highlighting the Shot needing moved, then clicking either Move Selected Shot Up or Move Selected Shot Down in the left side bar.
- Once all necessary tiles have been created, Click OK at the bottom to save the new layout, then click Close in the left sidebar to exit the Progression Editor.
Locating and using your new layout
- If any instance of XVCapture/DCV from this installation was open, the program must be exited and then reopened before the new progression will be available.

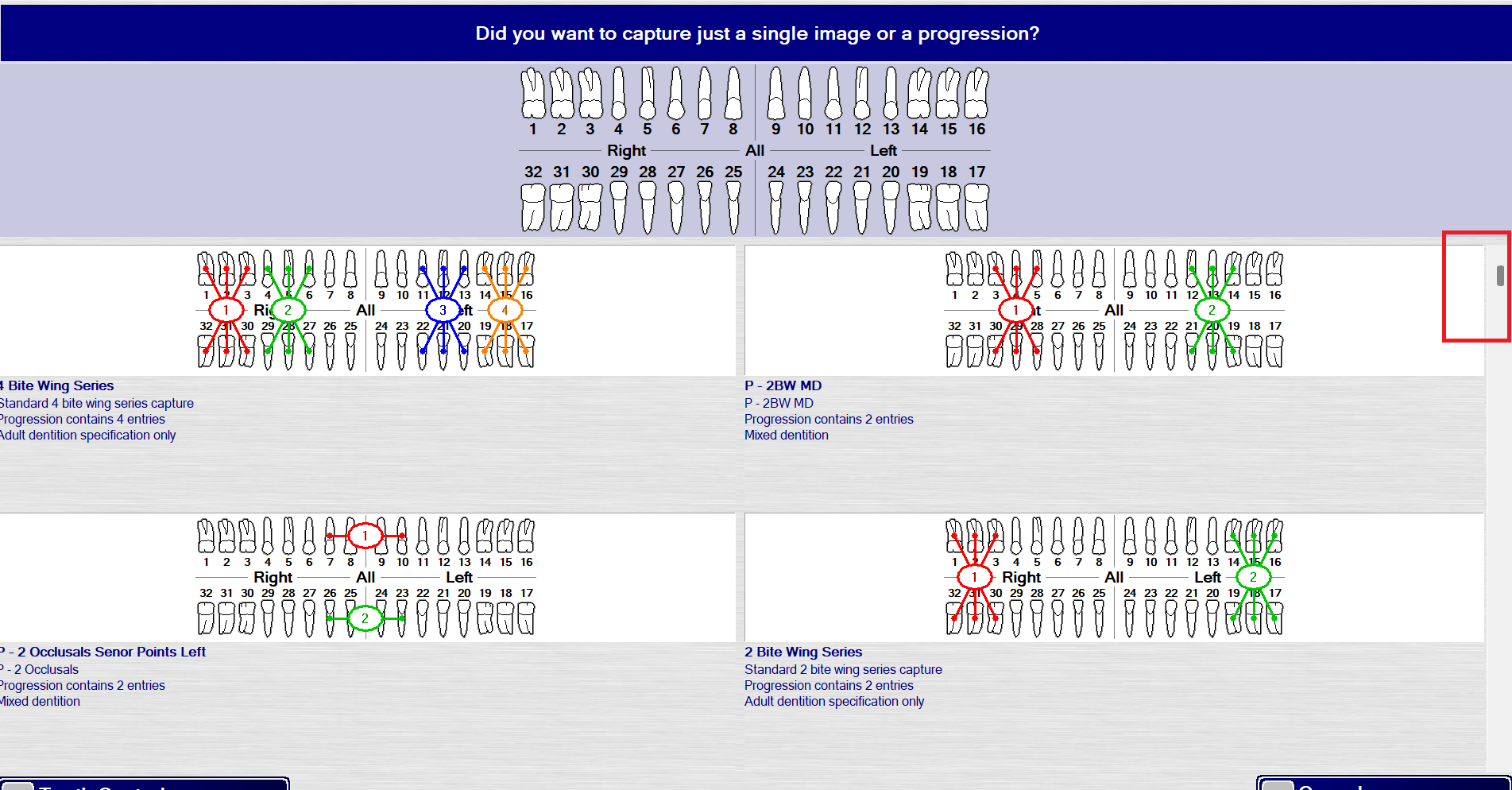

- The progression can be located and used during layout selection by scrolling down the list of layouts after selecting the imaging extension that will be used during image capture.

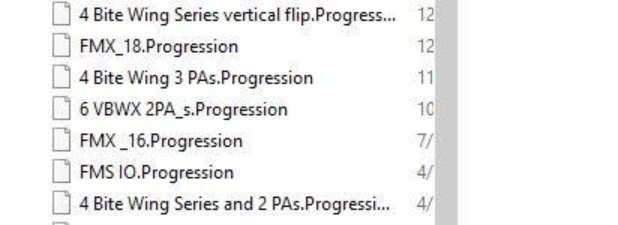

Custom layouts are install specific. If each workstation at a practice has individual local installations, navigate back to the same folder where Progression Editor.exe was found (on the PC where the custom layout was created), inside there is a folder called "bin". Inside the "bin" folder will be the custom layout named as it was in step 4 ending in .progression (IE CustomLayout.progression). Copy this file to the same "bin" folders of all other PCs needing to use the new custom layout.
Article Version 1.3 2025.05.16
