New enhancements allow dentists to detect and diagnose decay and bone loss with Apteryx XVWeb Cloud Imaging from Planet DDS, powered by our partners in AI.
The new AI integration will provide real-time decision support to dentists as they review X-ray images with patients and increase confidence in their clinical decisions, promote proactive and preventative care, and enhance provider-patient relationships.
This is the only partnership in the industry that collectively delivers:
-
An FDA-cleared solution that can quantify bone levels in addition to detecting and outlining decay.
-
The scalability of the Apteryx XVWeb software, allowing practices to use virtually any imaging device.
Click here to download the XVWeb users guide PDF

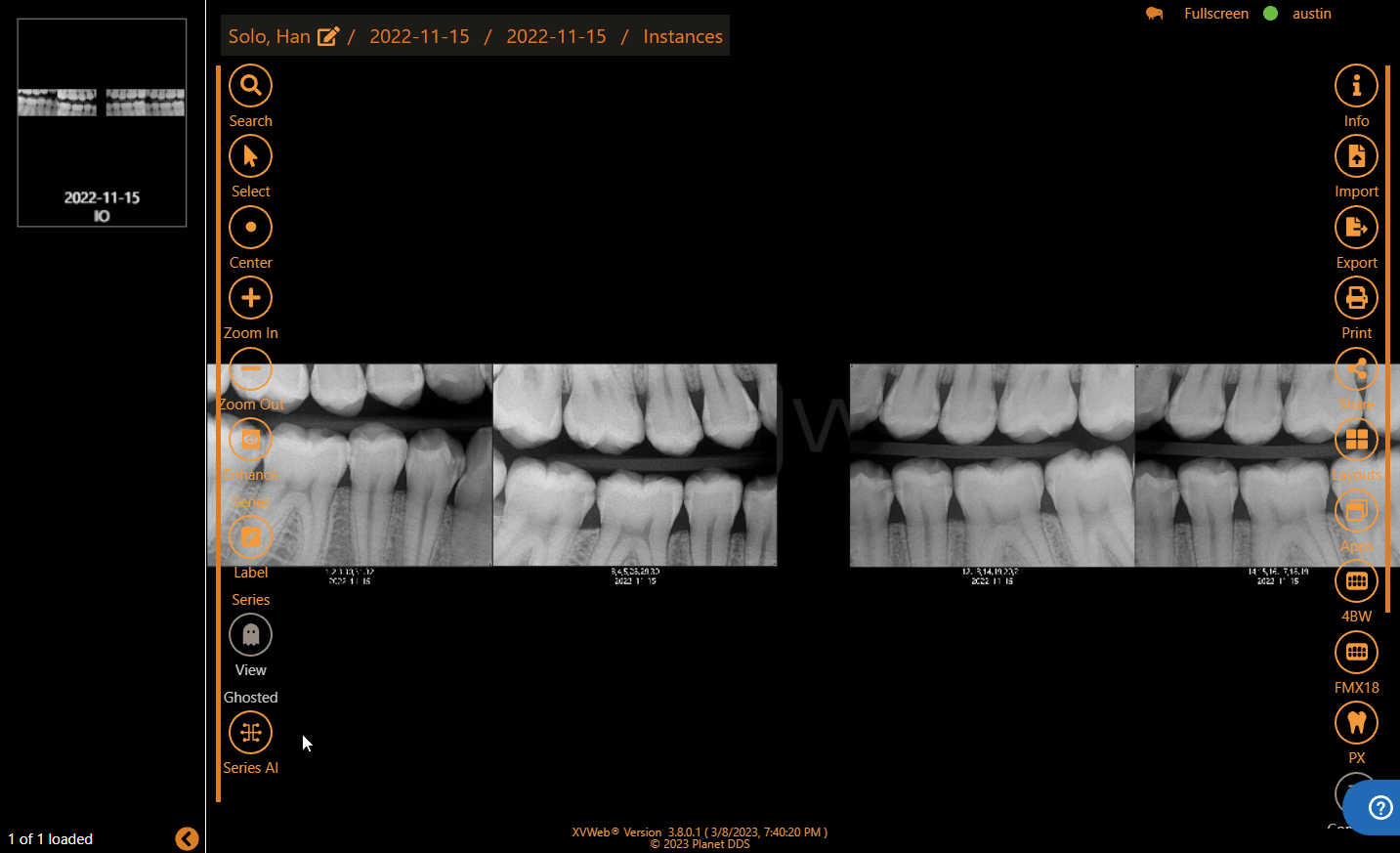

How to view your images with our AI overlay
-
When images are stored into XVWeb, they are automatically sent to your AI vendor. After approximately 1-2 minutes the data will be ready.
- If you are already viewing the series, select the series preview from the left hand bar one more time to refresh the series.
- To view historic images, select "Request Analysis" in the AI menu. This will request the full series to process.
- If there are findings they will automatically be shown when selecting an image
- You can also use the series AI button to view all pathologies for the full series on the left menu bar
After selecting the AI button, you will be shown the following pathologies (Click them to learn more).
Bone Levels
Bone measurements will appear as green lines with endpoints indicated by small green circles. The presence of radiographic bone loss (excess of 3mm from the CEJ to crest of bone) or bone level (less than 3mm from CEJ to crest of bone) will also be identified on the image. Measurements under 3 mm are in green, and higher than or equal to 3 mm are in red.Decay
Carious lesions predicted by the AI model will be shown as polygons on the specific tooth in the radiograph. Decay is highlighted in red on bitewing radiographs.Bone Ratio
Bone measurements will appear as green lines with endpoints indicated by small green circles. The presence of radiographic bone loss (excess of 3mm from the CEJ to crest of bone) or bone level (less than 3mm from CEJ to crest of bone) will also be identified on the image. Measurements under 15% are in green, and higher than or equal to 15% are in red.
Pathologies and Findings
Pathologies for the currently selected image can be enabled or disabled by selecting the boxes to the left of each Pathology name.
Example (Click to Expand)
Index:
Pathology available, and AI overlay is applied
Pathology available, but disabled
Pathology unavailable (See FAQs for more information)
Frequently Asked Questions
How long does it take to see results from Overjet?
Once your images are in the web, they begin immediate processing. After approximately 1-2 minutes, the data will be ready. This may take longer for sensors with very high resolution. Apteryx suggests ensuring that images are queued for processing by selecting the series preview thumbnail immediately after they become available.
We apologize for any inconvenience delay may cause and ask that you contact our support team if there is significant AI processing time delay in excess of 10 minutes.
Can all patient images be used with AI?
The currently approved pathologies and their requirements are below
Decay: 12 years and older
Bone Loss/Bone Ratio: 22 years and older. Images containing only adult teeth
Can all types of images be used with AI?
Intraoral x-rays (taken with a sensor/phosphorous plate scanner) will be available for use with XVWeb's AI tool.
What should I do if I disagree with a finding?
Your feedback is valued! Please share your thoughts with us via the submission of a ticket here:
Submit a Ticket
What is the difference between bone level and bone loss?
Overjet identifies bone level as any measurement less than 3mm from CEJ to crest of bone. Bone
loss is identified as any measurement of 3mm or greater from CEJ to crest of bone.
Our Partner
Overjet
Announcement:
https://www.planetdds.com/newsroom/planet-dds-partners-with-overjet/
Article Version 1.8.1 2023.3.14
