Offline Capture is a feature of XVWeb Capture that allows for the capture and viewing of images without an internet connection.
Getting Started

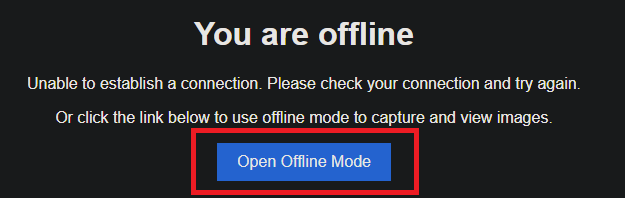

If you already have XVWeb open, you will receive a toast notification when a loss of internet connection is detected. Select it to be redirected to offline capture.

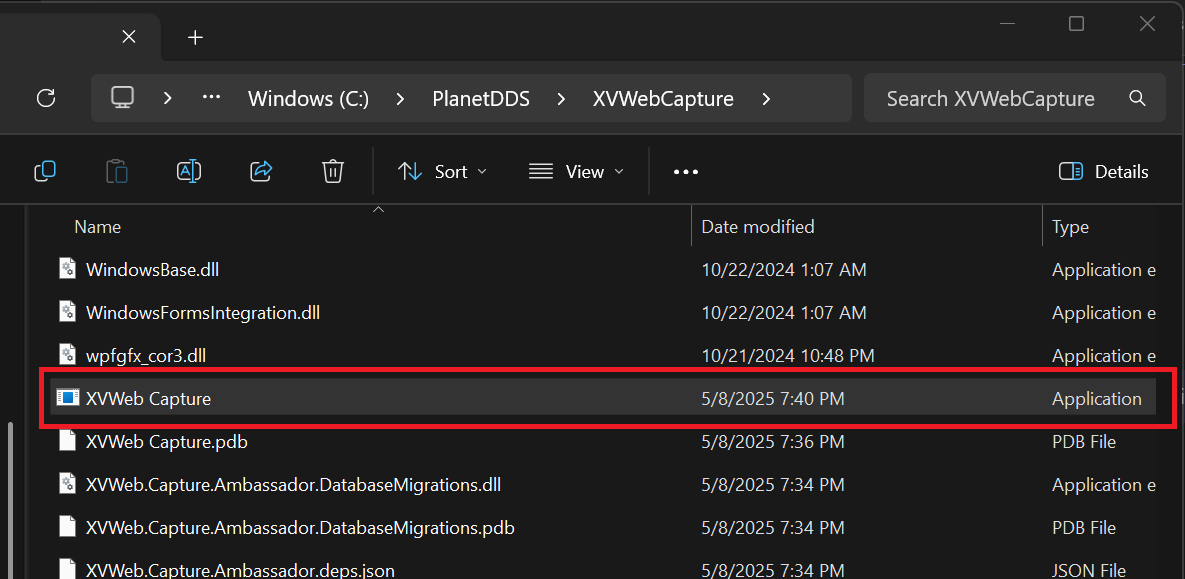

If XVWeb was not already open, you can right click the system tray icon for XVWeb Capture and select "Launch XVWeb Offline"
Offline XVWeb will launch to the patient search page. Any records that are cached or captured (but not yet purged) on the computer will be searchable.
How to Capture While Offline
If you do not know the patient ID due to your practice management software being unavailable, you can select the checkbox "I don't have a Patient Id".
Any images captured where the Patient ID was not available will have a generated patient ID that starts with "offline-" and ends with a generated string of numbers for example:
offline-1234567890987654321
It is imperative that the patient information being entered manually is accurate to ensure that offline captured images are associated with the appropriate patient record and are easily merged if the primary Id is unknown.
Select a shortcut, select Capture, or if you are unfamiliar with capturing you can follow this guide Capturing an Image in XVWeb Capture From the Patient Search Screen.
Please note that the DICOM Cloud Server will show "Failed to Connect" while capturing images offline, and the transfer status shown under each captured image will show "Transfer Failed - Saved Locally".
Images that fail to transfer into XVWeb are not purged. Images that have successfully stored will be purged after 24 hours.
Offline Capture will not launch if you have not returned online within 7 days. If you have an extenuating circumstance (e.g. natural disaster) that necessitates additional grace time, please submit a support ticket.
Please note that features that require an internet connection are not available while offline.
When Internet is Restored
Upon returning online, images will immediately begin forwarding and a toast notification will be shown that will bring you back to XVWeb online.
If the patient information entered while offline matches an existing online patient record, images will be shown for that patient as soon as they have successfully stored.
Correcting Records That Did Not Have an ID
XVWeb will display a toast notification if viewing images for a duplicate patient that we detect has the same first name, last name, date of birth, and gender, but a different patient ID. For this reason, if you visit a patient with an offline generated ID ("I don't have a Patient Id" was selected) OR the matching online patient record, you will receive a toast notification prompting you to merge the patients.
Follow the prompts to merge the patient record. Be sure to select the appropriate patient ID that matches the practice management software.
Article Version 1.0 12/8/2024
